Precision Pivot, Perfect Balance
Advanced pivot system engineering for doors up to 120kg. AXON delivers smooth, controlled door movement with precision-machined components that ensure perfect balance and effortless operation in any application.
Precision Pivot, Perfect Balance
Advanced pivot system engineering for doors up to 120kg. AXON delivers smooth, controlled door movement with precision-machined components that ensure perfect balance and effortless operation in any application.

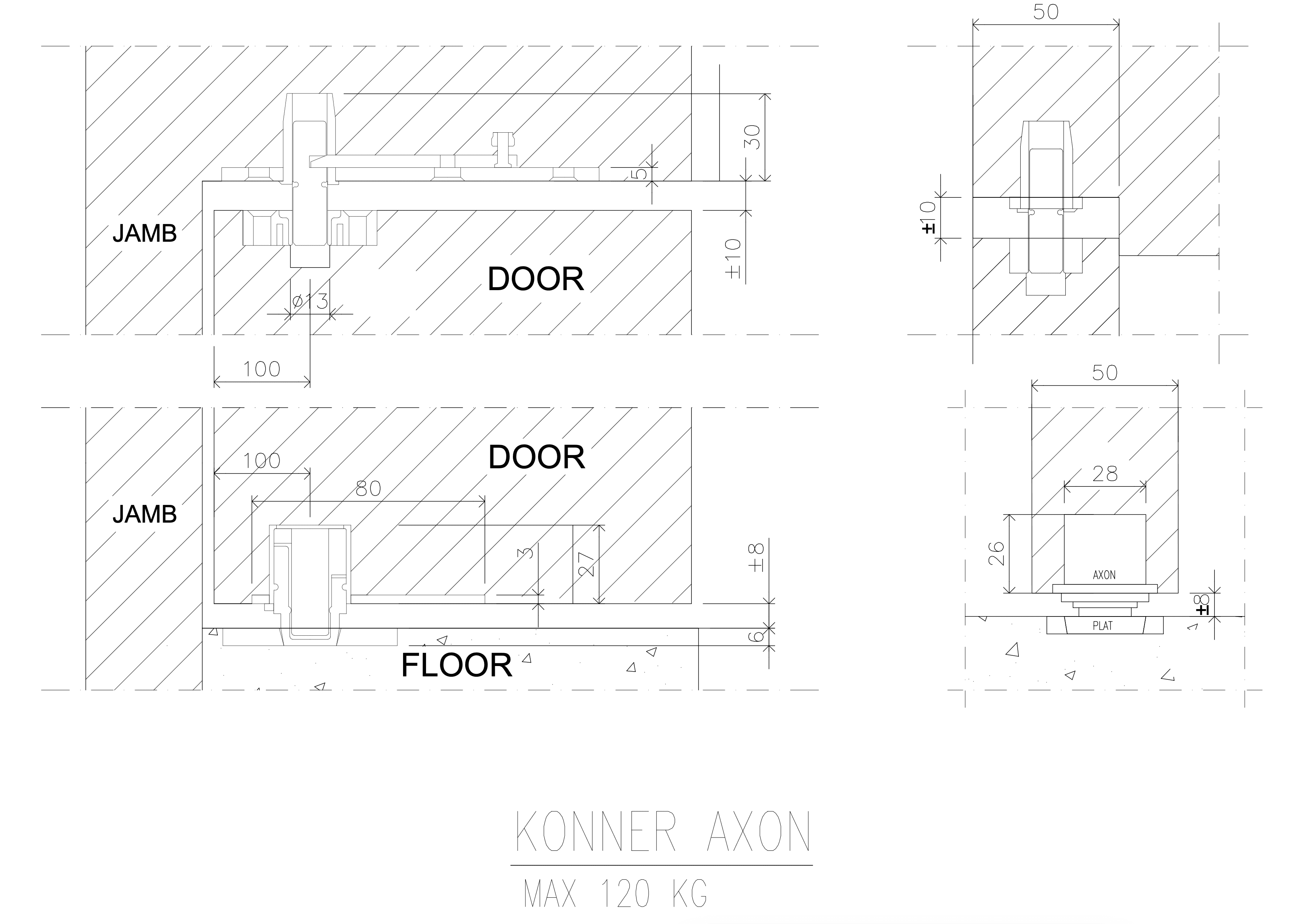

KONNER AXON | |
|---|---|
TYPE | Precision pivot system with auto-close |
MAX DOOR WEIGTH | 120 kg |
OPENING DIRECTION | Two-way (push & pull) |
AUTO CLOSE | Yes, without hydraulics |
TOP PIVOT WIDTH | 130 mm |
TOP PIVOT DEPTH | 30 mm |
PIVOT PIN DIAMETER | Ø13 mm |
BOTTOM PIVOT JAMB PLATE | 100 mm |
BOTTOM PIVOT DOOR PLATE | 80 mm |
PLATE THICKNESS | 3 mm |
LATERAL ADJUSTMENT | ±10 mm |
VERTICAL ADJUSTMENT | ±8 mm |
DEPTH ADJUSTMENT | ±8 mm |
HIDDEN PANEL COMPATIBLE | Yes |
FINISHING | Brushed Stainless Steel |
KONNER AXON | |
|---|---|
TYPE | Precision pivot system with auto-close |
MAX DOOR WEIGTH | 120 kg |
OPENING DIRECTION | Two-way (push & pull) |
AUTO CLOSE | Yes, without hydraulics |
TOP PIVOT WIDTH | 130 mm |
TOP PIVOT DEPTH | 30 mm |
PIVOT PIN DIAMETER | Ø13 mm |
BOTTOM PIVOT JAMB PLATE | 100 mm |
BOTTOM PIVOT DOOR PLATE | 80 mm |
PLATE THICKNESS | 3 mm |
LATERAL ADJUSTMENT | ±10 mm |
VERTICAL ADJUSTMENT | ±8 mm |
DEPTH ADJUSTMENT | ±8 mm |
HIDDEN PANEL COMPATIBLE | Yes |
FINISHING | Brushed Stainless Steel |
