Professional Glass Hardware Solutions
Precision-engineered aluminum hinges designed specifically for glass door applications. ECLIPSE delivers smooth, reliable operation for both glass-to-glass and glass-to-wall installations, proving that specialized hardware makes all the difference.
Professional Glass Hardware Solutions
Precision-engineered aluminum hinges designed specifically for glass door applications. ECLIPSE delivers smooth, reliable operation for both glass-to-glass and glass-to-wall installations, proving that specialized hardware makes all the difference.

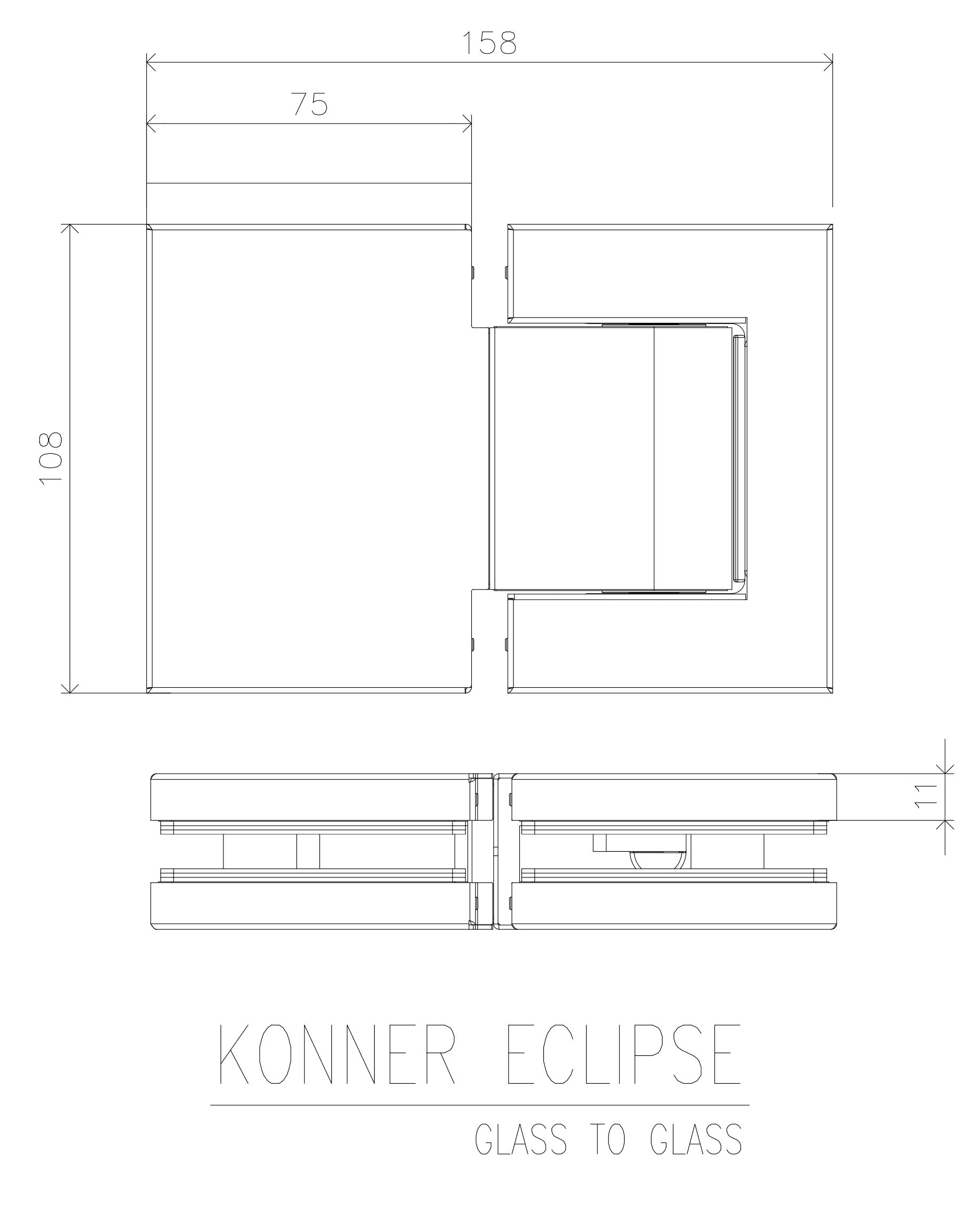

KONNER ECLIPSE GLASS TO GLASS | |
|---|---|
TYPE | Aluminium glass door hinge |
MATERIAL | Aluminium |
LOAD CAPACITY | 77-100 kg |
MAX GLASS DOOR WIDTH | 1000 mm |
GLASS DOOR THICKNESS | 8-14 mm |
TOTAL WIDTH | 158 mm |
GLASS CLAMP WIDTH | 75 mm |
HEIGHT | 108 mm |
BODY THICKNESS | 11 mm |
OPENING ANGLE | 180° |
FIXING PIN DIAMETER | 5.5 mm |
FINISHING | Black Bronze Satin Nickel Satin Brass |
KONNER ECLIPSE GLASS TO GLASS | |
|---|---|
TYPE | Aluminium glass door hinge |
MATERIAL | Aluminium |
LOAD CAPACITY | 77-100 kg |
MAX GLASS DOOR WIDTH | 1000 mm |
GLASS DOOR THICKNESS | 8-14 mm |
TOTAL WIDTH | 158 mm |
GLASS CLAMP WIDTH | 75 mm |
HEIGHT | 108 mm |
BODY THICKNESS | 11 mm |
OPENING ANGLE | 180° |
FIXING PIN DIAMETER | 5.5 mm |
FINISHING | Black Bronze Satin Nickel Satin Brass |
KONNER ECLIPSE GLASS TO WALL | |
|---|---|
TYPE | Aluminium glass door hinge |
MATERIAL | Aluminium |
LOAD CAPACITY | 77-100 kg |
MAX GLASS DOOR WIDTH | 1000 mm |
GLASS DOOR THICKNESS | 8-14 mm |
GLASS CLAMP DEPTH | 29 mm |
GLASS CLAMP INSET | 11.5 mm |
HEIGHT | 61 mm |
WALL PLATE WIDTH | 17 mm |
WALL FIX SPACING | 35 mm / 35 mm |
TOTAL ASSEMBLY WIDTH | 77.6 mm |
BODY THICKNESS | 8 mm |
OPENING ANGLE | 180° |
FIXING PIN DIAMETER | 5.5 mm |
FINISHING | Black Satin Nickel Chrome |
KONNER ECLIPSE GLASS TO WALL | |
|---|---|
TYPE | Aluminium glass door hinge |
MATERIAL | Aluminium |
LOAD CAPACITY | 77-100 kg |
MAX GLASS DOOR WIDTH | 1000 mm |
GLASS DOOR THICKNESS | 8-14 mm |
GLASS CLAMP DEPTH | 29 mm |
GLASS CLAMP INSET | 11.5 mm |
HEIGHT | 61 mm |
WALL PLATE WIDTH | 17 mm |
WALL FIX SPACING | 35 mm / 35 mm |
TOTAL ASSEMBLY WIDTH | 77.6 mm |
BODY THICKNESS | 8 mm |
OPENING ANGLE | 180° |
FIXING PIN DIAMETER | 5.5 mm |
FINISHING | Black Satin Nickel Chrome |
