Heavy Duty Performance
Cold Steel delivers industrial-grade strength with precision tolerances, handling demanding applications while maintaining smooth, reliable operation cycle after cycle.
Heavy Duty Performance
Cold Steel delivers industrial-grade strength with precision tolerances, handling demanding applications while maintaining smooth, reliable operation cycle after cycle.

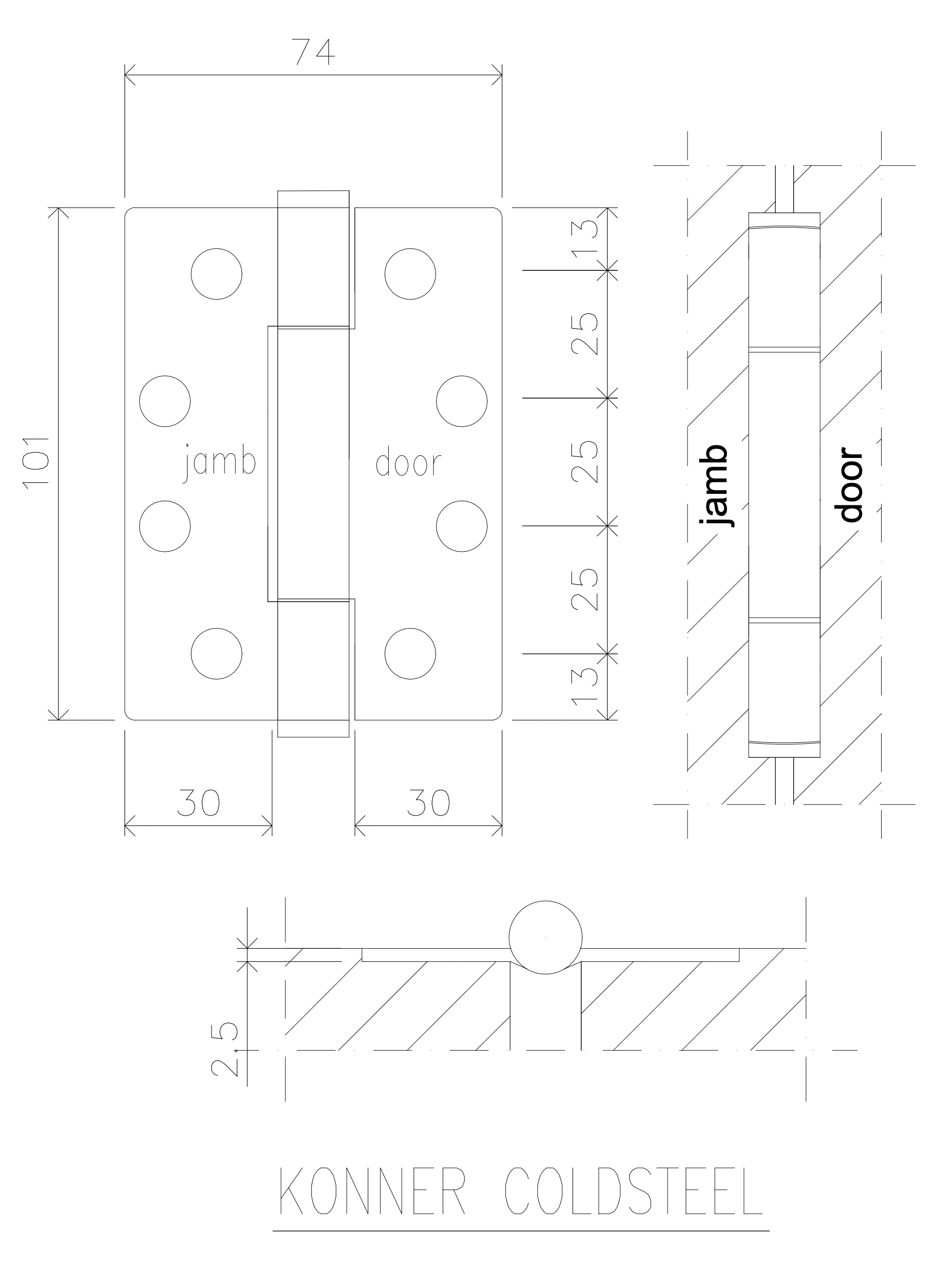

KONNER COLD STEEL | |
|---|---|
TYPE | Butterfly hinge |
MATERIAL | Stainless steel 304 |
LENGTH | 107 mm |
WIDTH | 74 mm |
THICKNESS | 2.5 mm |
JAMB LEAF WIDTH | 30 mm |
DOOR LEAF WIDTH | 30 mm |
TOP / BOTTOM INSET | 13 mm each |
SCREW HOLE SPACING | 25 mm / 25 mm / 25 mm |
PIVOT PIN GAP | ± 3.0 mm |
DOOR BORE | 14 mm |
FINISHING | Black |
KONNER COLD STEEL | |
|---|---|
TYPE | Butterfly hinge |
MATERIAL | Stainless steel 304 |
LENGTH | 107 mm |
WIDTH | 74 mm |
THICKNESS | 2.5 mm |
JAMB LEAF WIDTH | 30 mm |
DOOR LEAF WIDTH | 30 mm |
TOP / BOTTOM INSET | 13 mm each |
SCREW HOLE SPACING | 25 mm / 25 mm / 25 mm |
PIVOT PIN GAP | ± 3.0 mm |
DOOR BORE | 14 mm |
FINISHING | Black |
